2.4-inch 240x320 Resolution Transflective TFT LCD Display Module for Industrial Applications

1. Product Name: 2.4-inch 240x320 MCU/SPI + RGB/SPI Interface Transflective LCD Display
2. Model:
3. Size: 2.4 inches
4. Compatible Models: --
5. With Touchscreen: No
6. Touch Type: None
7. Display Mode: TFT
8. Display Colors: 262K
9. Resolution: 240x320
10. Dot Pitch: 0.153(H) * 0.153(V)
11. View Angle: 6H View Angle
12. Driver IC: ST7789T3-G4-1
13. Display Type: Transflective, Normally White
14. Outline Dimensions: 42.92 * 60.26 * 2.46mm
15. Visible Area: 37.72 * 49.96mm
16. Dot Matrix Area: 36.72 * 48.96mm
17. Brightness: 350 cd/m²
18. Contrast Ratio: 80:1
19. Interface Type: 8/9/16/18-bit MCU
3/4 SPI + 16/18-bit RGB
3/4-wire Serial Port
20. Number of Pins: 45
21. Pin Pitch: 0.3mm
22. Connection Type: Plug-in Type
23. Operating Voltage: 3.3V
24. Backlight Color and Type: White LED Backlight
25. Backlight Circuit: 6 LEDs in Series VF=17.25V, IF=20mA
26. Lifespan: 50,000 hours
27. Operating Temperature: -20℃ ~ +70℃
28. Storage Temperature: -30℃ ~ +80℃
29. Product Certification: RoHS
30. Quality System Certification: ISO9001, ISO13485, ISO14001, IATF16949

Product Tags:

2.4-inch transflective LCD display



MCU/SPI interface TFT display



240x320 resolution industrial display

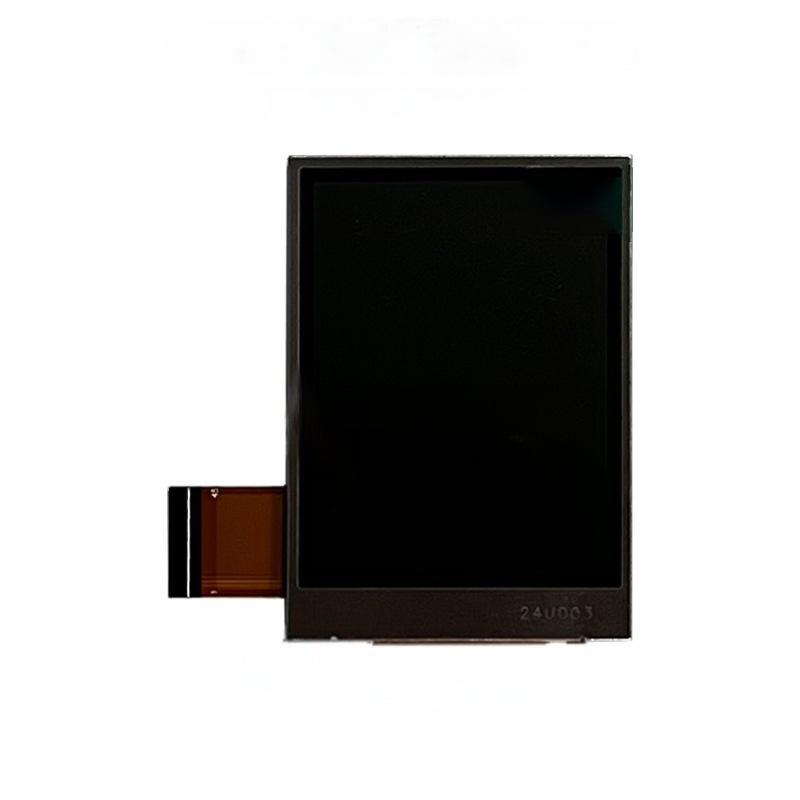

2.4-inch 240x320 Resolution Transflective TFT LCD Display Module for Industrial Applications Images
